BS5163 Resilient Seated Gate Valve

Packaging:
Plywood case
Productivity:
1000pcs/week
Brand:
huahui
Transportation:
Ocean,Land,Air
Place of Origin:
china
Supply Ability:
300 tons per month
Certificate:
ISO9001

Basic Info

Type: Direct-acting

Material: Cast Iron

Connection Form: Flange

Pressure: Ordinary Pressure

Actuator: Manual

Seal Surface: Wedge Gate Valve

Usage: Regulation

Standard: GB

Application: Water Industrial Usage

Size: 2"-48"

Product Description

BS5163/DIN3352 F4/JIS/AWWA C509

Ductile Iron Gate Valve,Resilient Seat Gate valve

Specifications

Name: ductile iron gate valve
Material:ductile iron
Pressure:1.6Mpa
Type:gate valve
Connection Type:FNPT

ductile iron gate valve

Features:
1) Seal: stainless steel / fluorine plastic
2) Body: ductile iron/grey iron

3) Disc: grey iron

4) Stem: carbon steel
5) Type:gate Valve

6) Pressure: 1.0-6.4MPa

7) Size: DN40-DN600
8) Connection type: thread

9) Operation: hand wheel

Applicable range

Shell material

Suitable medium

Suitable temperature(degree)

Carbon steel(C model)

Water, steam, oil

425

Ti-Cr-Ni steel(P model)

Nitric acid

200

Ti-Cr-Ni-Mo steel(R model)

Acetic acid

200

Cr-Mo steel(I model)

Water, steam, oil

500

Feature

Serial no.

part

material

1

Body

Ductile iron, Cast Iron

2

Wedge Disc

Ductile cast iron packed with rubber or EDPM outside

3

Bolt

Carbonized treatment

4

Gasket

NBR or EPDM

5

Cover

Ductile iron, Cast iron

6

Stem

Stainless steel

7

O-ring/O-type sealing ring

Ductile iron, Cast iron

8

Thrust bearing

Copper

9

Bolt

Stainless steel

10

Gland

2Cr13

11

Dust proof gasket

Buna-N rubber NBR

12

Hand wheel(or Transmission cap)

Cast iron

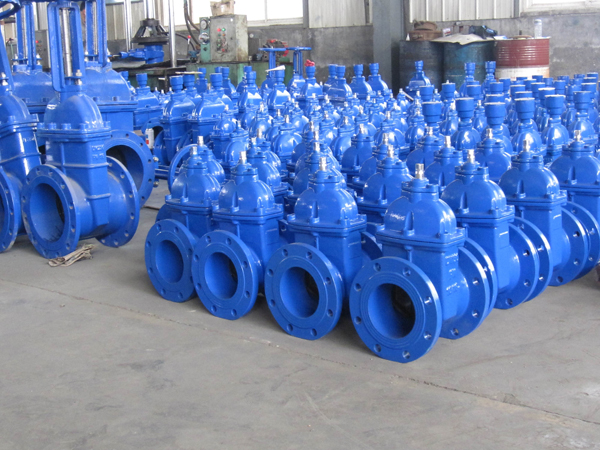

gate valve

gate valve

gate valve
