Hydraulic Cutting Steel C Purlin Roll Forming Machine

  • Hydraulic Cutting Steel C Purlin Roll Forming Machine
  • Hydraulic Cutting Steel C Purlin Roll Forming Machine
  • Hydraulic Cutting Steel C Purlin Roll Forming Machine
  • Hydraulic Cutting Steel C Purlin Roll Forming Machine

Hydraulic Cutting Steel C Purlin Roll Forming Machine

    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Terms of Trade: FOB,CFR,CIF,FCA,CPT
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
    Packaging: Export package
    Productivity: 30 Sets Per Month
    Brand: TG
    Transportation: Ocean,Land
    Place of Origin: Hebei Province, China
    Supply Ability: 30 Sets Per Month
    Certificate: CE, ISO, SGS
    HS Code: 84552210
    Port: TianJin

Basic Info

Model No.: TG-0159

Warranty: 1 Year

Certification: CE, SGS, ISO9001

Customized: Customized

Condition: New

Control Type: CNC

Automatic Grade: Semi-Automatic

Color: User Defined

Voltage: 220v-380v-440v

Controlling Mode: PLC+Touch Screen

Width: 80-300mm

Shear Type: Adjusted Hydraulic Punching

Thickness: 1.5-3 Mm Or Customized Above Thickness

Transmission: Chain Or Gear

Roll Station: According The Final Design

Main Motor Power: 22kw

Roll Forming Speed: 10-15m/min

Product Description

The Hydraulic C Purlin Machine is a single-roll forming unit that can produce a variety of C-type purlins. The Hydraulic Cutting C Purlin Machine is mainly characterized by passive loading frame, leveling device, punching device, cutting device after forming, hydraulic station, computer control system, etc., which are easy to operate Metal C Purlin Roll Forming Machine. The Automatic Purlin Machine can automatically complete the forming process of the C-shaped steel according to the given C-shaped steel size. C Purlin Making Machine is widely used in purlins and wall beams of steel structures, and can also be combined into lightweight building trusses, brackets and other building components. In addition, Steel C Channel Making Machine can also be used for columns, beams and arms in mechanical light manufacturing.

We are the top professional Purlin Roll Forming Machine manufacturer in China, specializing in custom Purlin Making Forming Machine equipment. If you need a Automatic C Purlin Roll Forming Machine, you are welcome to visit our factory. Below is our automatic C Purlin Machine. If you need to purchase Steel Purlin Machine, you can email me or send me a message via WhatsApp 008615732728858. Our company will provide you with pictures and videos of professional automatic Steel Purlin Making Machine. The C-shaped steel is automatically formed by the Stee C Purlin Roll Forming Machine.

1. Profile Drawing and Products for Reference

Hydraulic C Purlin Machine

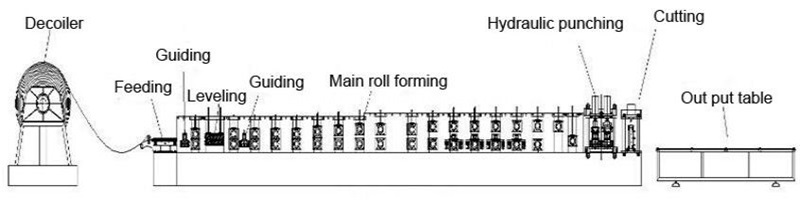

2. The Chart of Process flow

De-coiler--- Guiding-- Roll forming--- Hydraulic Cutter- Output Table

Steel Profile C Shape Roll Forming Machine

Steel Purlin Roll Forming Machine

3. The equipment including











Roll forming machine



Hydraulic cutting



PLC control system



Pump station



Output table


4. Technical specification and details
(1) Hydraulic De-coiler
Un-power: manual de-coiler; Max. Capacity: 7T
Suit for coil inner diameter: 508mm, suitable coil Max. out diameter: 1000mm
Manual power expands the coil inner surface
(2) C&Z Purlin Forming Machine Roll forming machine


Product Name

C Purlin Roll Forming Machine

Machine Size


Machine Weight

About 8 T

Frame Materials

350H steel

Forming Shaft




45# quenched and tempered material

Forming roller

45# Forging Hard Chrome Plating

Cutting System

Hydraulic Cutting

Main Engine power

22 KW with cycloidal reducer

Forming Rows

16 rows

Forming Speed


Pressing Thickness


Effective Width


Pressing width


Electric Control System

SIEMENS/ Schneider

Pump Station Motor

15 KW




Wuxi rip or Xin Ya


CHINT or delixi

(3) Hydraulic Cutting
1) Adopts post cutting, Stop to cut
2) The cutting blade material is Cr12 with quenched treatment
3) Adopts welded frame for good rigidity
4) Cutting frame has been heat treatment to avoid final product deformation. cutting length tolerance ±2mm
5) The power of cutting is provided by hydraulic station
6) The final product can be cut as per set length in PLC controller, and the length is automatically measured by encoder. When final product reaches the set length, machine will stop to cut the Product automatically. Finish this action, C Type Steel Forming Machine will run again continuously

(4) Hydraulic station
1) It supplies the power for the hydraulic cutter
2) All hydraulic accessories are all use Chinese famous brand products
4) Hydraulic motor power: 3KW
(5) PLC Control System
1) This system uses Delta PLC to control the all working actions. Production quantity and each piece length will be automatically measured. It is convenient to control the Steel Channel Forming Machine
2) Delta converter adjusts speed technology, realize the automatic production
3) Text screen is input and cancelled the working data
4) Friendly man-machine interface system can be set batches to the work piece, length, quantity, etc.
5) Encoder count, having function of count and measuring length
6) Suitable power voltage: 380V/50HZ/3Phase (can de designed according to buyer's requirement)
(6) Product Rack (un-powered)
1) They are used to put the final product when product coming out from cutting device
2) Two pieces, each piece length is 1m, total length is 3 meters
3) Collect the final product and final products are convenient to be stacked by workers
5. Machine Overview

Purlin Roll Forming Machine

Automatic Purlin Machine

Hydraulic Cutting C Purlin Machine

C Type Steel Forming Machine

6. Scene application

Stee C Purlin Roll Forming Machine

7. Customer Visiting

Purlin Roll Forming Machine

8. Machine Loading

Purlin Making Forming Machine

9. Payment Terms and After-sale Service

1) FOB Tianjin
2) Payment: 30% T/T deposit, and pay the balance before shipping Steel Purlin Roll Forming Machine
3) Delivery time: 60 working days
4) Guarantee period: 12 months limited warranty starting from date of delivery. Shipping cost for parts to be replaced during warranty period have to be borne by the customer
5) Spare parts: bearings, buttons, chains, magnetic valve, protective tube etc.
6) Installation and training
1. If buyers visit our factory and check CZ Purlin Roll Forming Machine, we will teach you how to install and us the C-Shaped Steel Forming Machine, and also train your workers/technician face to face
2. Without visiting, we will send you user manual and CD to teach you to install and operate C Z Purlin Roll Forming Machine
The buyer should pay the installation charges (USD 100 one man one day). To the seller`s appointed account by T/T before the seller`s technicians go to the buyer`s factory. The buyer pays the seller`s technicians travel cost outside China, including round air tickets fee, accommodation and food, provide transportation from living hotel to the work place, necessary communication, and insurance, etc.

Our main products include Stud Track Roll Forming Machine, Steel Frame Forming Machine, Purlin Roll Forming Machine, Welded Pipe Making Machine, Highway Guardrail Roll Forming Machine, Metal Expanded Mesh Machine and so on. If you have any further question of our Cold Roll Forming Machine, please feel free to contact me
